DG7YBN / LTE / YBN 850 MHz 5 ele.
  Last Update Apr. 14th 2015




.......



Performance Data and Geometry
Pattern and VSWR
Download as File


YBN 850-5 Yagi



Small LTE Low Noise Yagi covering 800 to 860 MHz LTE band

Emphasising a relatively high directivity factor for its size over an extraordinary bandwidth predestinates this design to boost the signal-to-noise level in difficult spots for reception or to manage a connect at all in rural places.






Performance Data

                       820 to 860 MHz
Gain vs. isotr. Rad.   9.7 to 10.5 dBi
Gain vs. Dipole        7.5 to  8.3 dBD
-3 dB H-plane         55.2 deg.
-3 dB E-plane         73.4 deg.
F/B                  -18.0 to -34.3 dB
F/R                  -16.9 to -18.2 dB
Impedance               50 ohms
Mechan. Length         321 mm
Electr. Length        0.73 λ (840 MHz)

Stacking Dist. h-pol. (840 MHz)
top-to-bottom         0.30 m = 0.98 ft
side-by-side          0.39 m = 1.26 ft

Geometry



        Pos.    Full Length
                Free Space

Refl.     0.0        174.0
DE       54.0        174.0
D1       76.5        156.0
D2      155.0        148.0
D3      261.0        138.0

                   Ele. 4 mm
                 Dipole 5 mm







Pattern and VSWR Plots

Elevation and Azimuth plots from 820 to 860 MHz

Azim Plot at 840 MHz

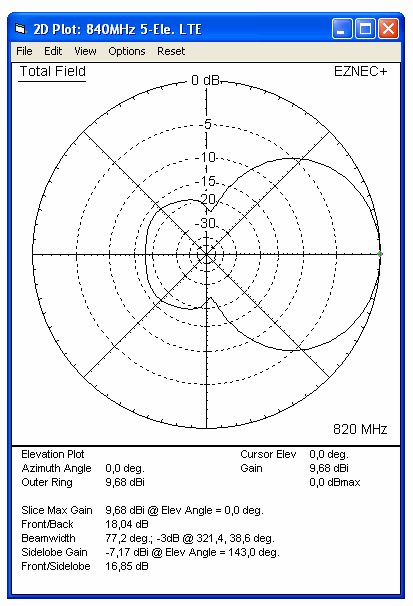

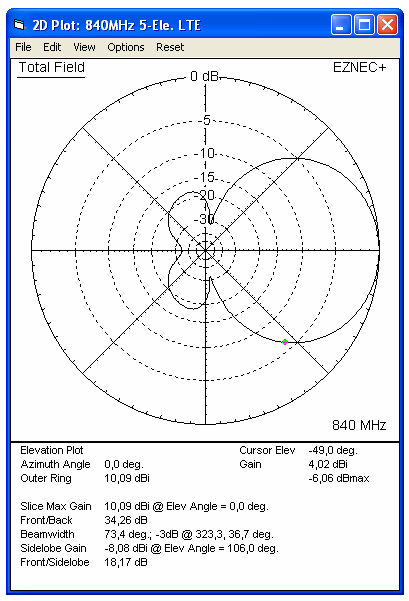

Elev. Plots at 820, 840, 860 MHz



SWR plot - simulated










Downloads

EZNEC file of this Yagi (4 mm ele.)








73, Hartmut, DG7YBN
