DG7YBN / 1296 MHz / GTV 23-23m
  Last Update Dec. 09th, 2023


Performance Data and Geometry
Pattern and VSWR
Download as File

GTV 23-23m  Yagi with bent Driven Element

A long 23 cm Yagi that provides a very clean pattern and 18.6 dBi of gain.
This is the scaled version of the 70 cm band GTV 70-23m. Design date of issue: 2021.09.17

GTV 23-23m 3D pattern plot at 1296.2 MHz

Performance Data

Specs: with 3/8 inch elements @ 1296.2 MHz

Gain vs. isotr. Rad.  18.6 dBi
Gain vs. Dipole       16.5 dBD
-3 dB E-plane         22.8 deg.
-3 dB H-plane         23.4 deg.
F/B                  -36.7 dB
F/R                  -30.4 dB
Impedance               50 ohms
VSWR Band Width       1.17:1 *
Mechan. Length        1746,8 mm plus 2 x 50 mm offset
Electr. Length        7.55 λ

Stacking Dist. h-pol. (1296.2 MHz)
top-to-bottom         0.570 m or 1.87 ft
side-by-side          0.585 m or 1.92 ft

*) at 1300.0 MHz


GTV 23-23m at ZS6BD

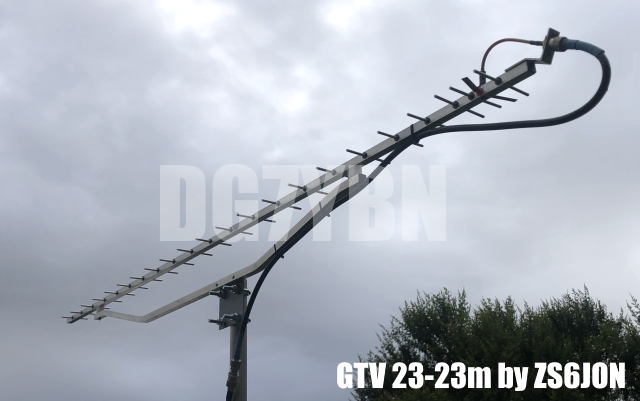

ZS6JON built 23 el. at Louis, ZS6BD.

GTV 23-23m at UA1019SWL


Igor, UA1019SWL built this 23 el. GTV using 3D printed insulators of near same dimensions as ZS6JON (7.2 mm outer diameter).

How many VHF operators have been looking up this design since Dec. 2020?

Flag Counter


This Yagi with 2.40 mm elements

Boom shape: -
Boom dim: -
Offset rear: 40 mm
Offset front: 40 mm

Image: Wooden/Plastic Boom or Plastic Standoff Holders

• This table holds no Boom or element Correction.
Experimenters version!

• The equivalent element diameter on 432 MHz is 7.2 mm.
• Elements may be made from 2.40 mm aluminium or copper (CuZn) welding rods.
• if using copper be aware that spray coating with clear coat will change frequency response.
• A 0.03 mm layer (30 microns) of clear coat (dielectrical constant approx. 2.8) shifts by approx. -3.5 MHz (1297 > 1293.5 MHz).
• Very thin wooden lace or high standoff holders that are also very thin may be used.

This Yagi with 3/16 inch = 4.763 mm elements

Boom shape: square
Boom dim: 5/8 x 5/8 inch
Wall thickn.: 1.6 mm
Holes in boom: 7.5 mm
Offset rear: 50 mm
Offset front: 50 mm

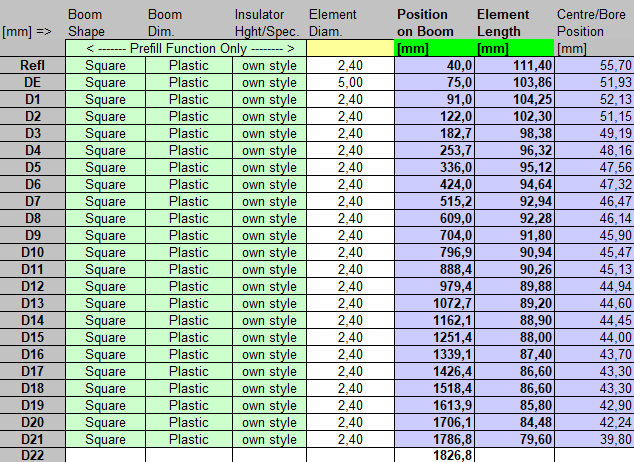

"Ready to saw and drill" data for mounting elements through this plastic boom:

The Drivers diameter is 5.0 mm.
The EZNEC model is done with Auto-Segmentation at 1296.2 MHz

Pattern and VSWR Plots

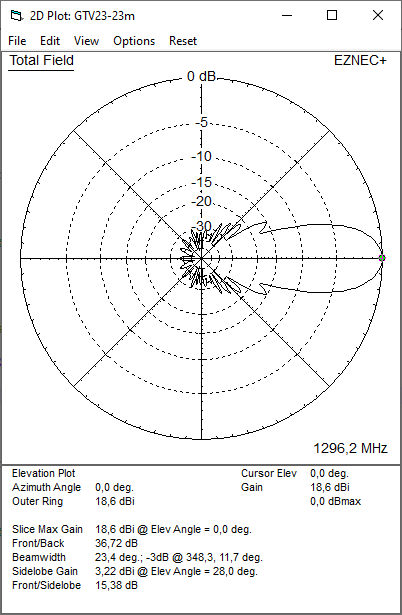

Elevation and Azimuth plot at 1296.2 MHz

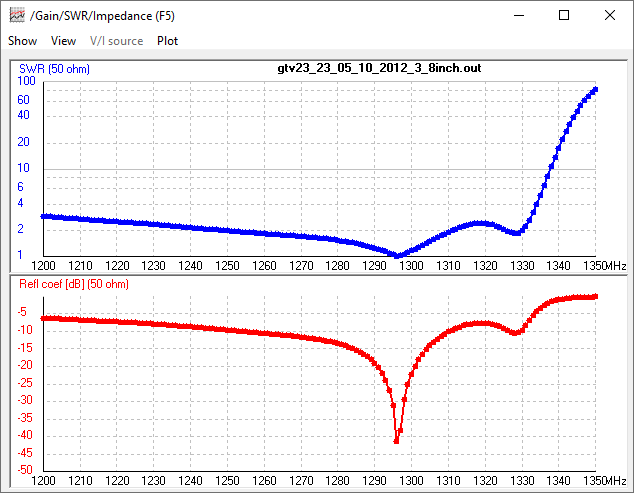

Return Loss and VSWR plots - simulated

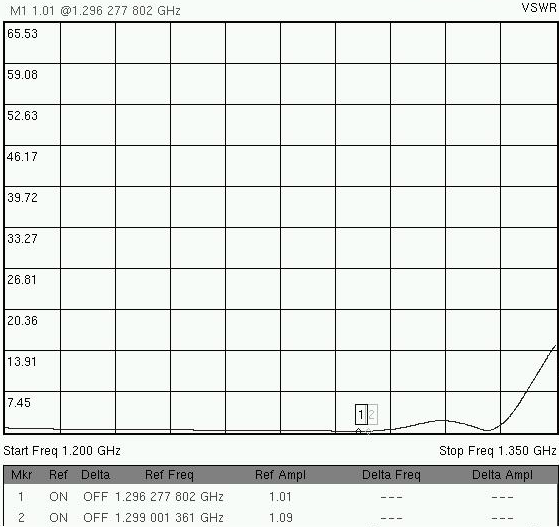

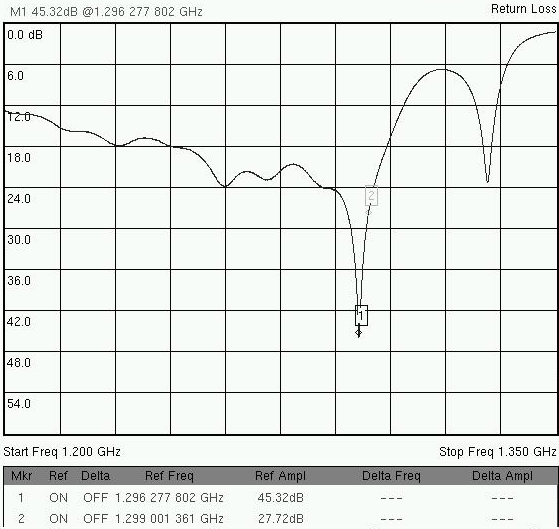

Return Loss, VSWR and Smith Chart - measured by ZS6JON


None so far.

73, Hartmut, DG7YBN
