DG7YBN / 1296 MHz / GTV 23-34w
  Last Update May 28th, 2021




.......




Performance Data and Geometry
Pattern and VSWR
Download as File


GTV 23-34w  Yagi with bent Driven Element



A long 23 cm Yagi that provides a very clean pattern and almost 19 dBi of gain.
This is the scaled version of the 70 cm band YBN 70-25m. Design date of issue: 2020.12.29

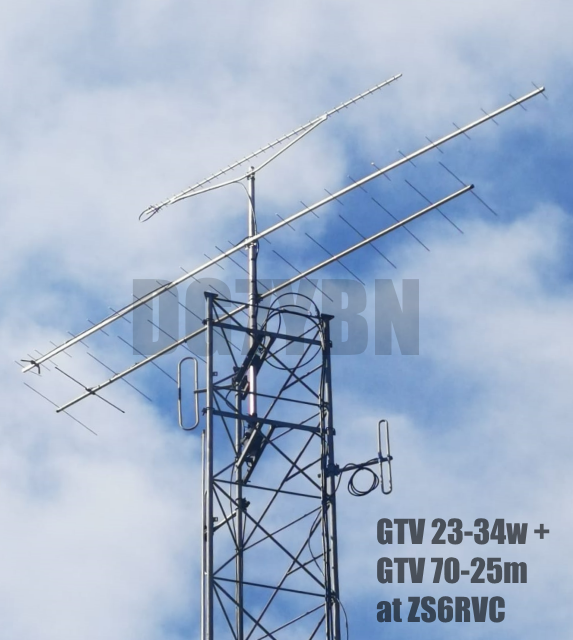

ZS6JON built GTV 23-24w at Ronald, ZS6RVC


GTV 23-34w trimming test in ZS6JON's garden:

GTV23-34w Driver Cell (ZS6JON). Blade Dipole from brass fitted into slotted ⌀ 5 mm mid section pieces.

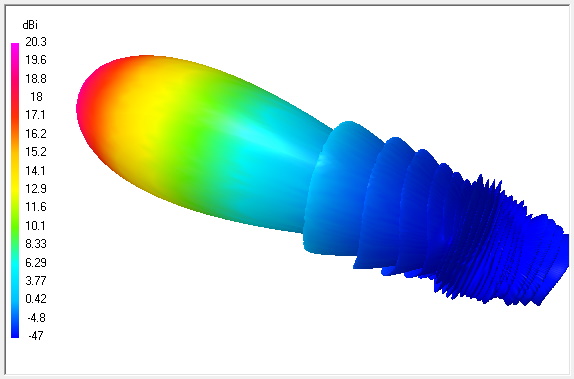

GTV 23-34w 3D pattern plot at 1296.2 MHz




Performance Data

Specs: with 3.2 mm elements @ 1296.2 MHz

Gain vs. isotr. Rad.  20.3 dBi
Gain vs. Dipole       18.1 dBD
-3 dB E-plane         19.6 deg.
-3 dB H-plane         20.0 deg.
F/B                  -39.6 dB
F/R                  -33.5 dB
Impedance               50 ohms
VSWR Band Width       1.05:1 *
Mechan. Length        2818.5 mm plus 2 x 70 mm offset
Electr. Length        12.2 λ

Stacking Dist. h-pol. (1296.2 MHz)
top-to-bottom         0.66 m or 2.19 ft
side-by-side          0.68 m or 2.23 ft

*) at 1300.0 MHz


How many VHF operators have been looking up this design since Dec. 2020?

Flag Counter






Geometry



This Yagi with 3.2 mm elements

Ele. 3.2 mm
DE 4.0 mm
Boom 7.5 x 7.5 mm ABS Plastic


Ele. fastening &. photo acc. F4FEY




"Ready to saw and drill" data for mounting elements through this plastic boom:


Coming soon ...


The Drivers diameter is 4 mm.
The EZNEC model is done with Auto-Segmentation at 1296.2 MHz




This Yagi with 3/16 inch = 4.763 mm elements

Boom shape: square
Boom dim: 5/8 x 5/8 inch
Wall thickn.: 1.6 mm
Holes in boom: 7.5 mm
Offset rear: 70 mm
Offset front: 70 mm

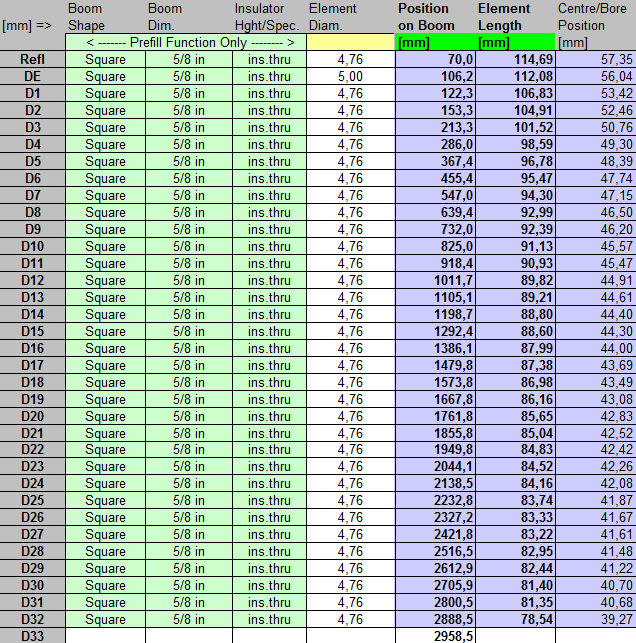

"Ready to saw and drill" data for mounting elements through this plastic boom:





The Drivers diameter is 4.763 mm.
The EZNEC model is done with Auto-Segmentation at 1296.2 MHz








Pattern and VSWR Plots

Elevation and Azimuth plot at 1296.2 MHz

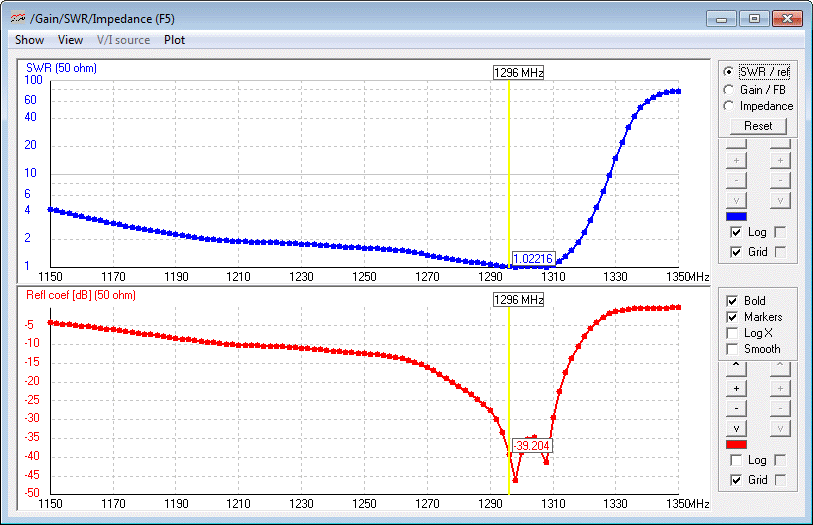

Return Loss and SWR plots - simulated

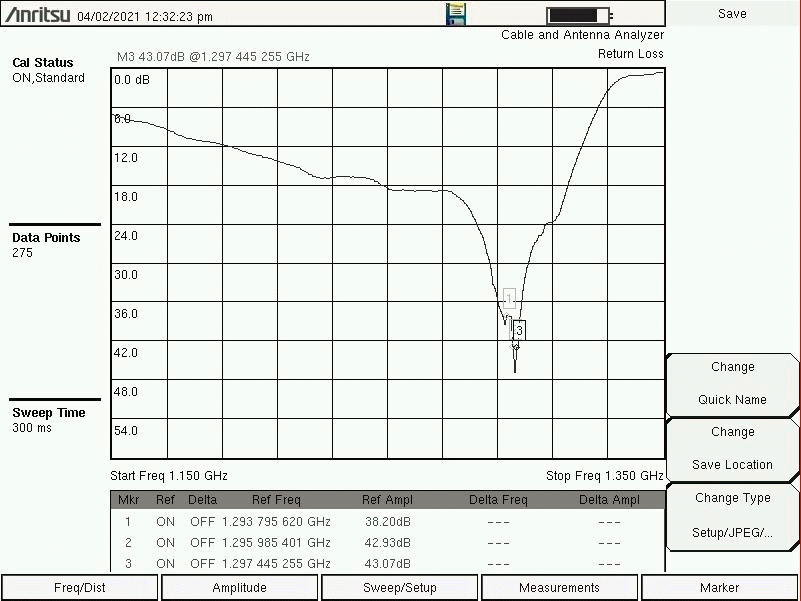

GTV23-34w plot 1150-1350 MHz by ZS6JON: Return Loss (dB)

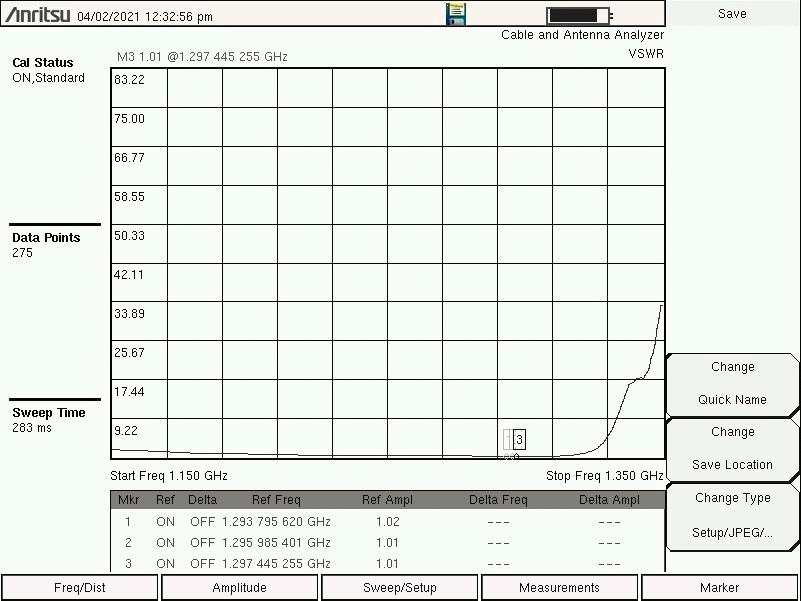

GTV23-34w plot 1150-1350 MHz by ZS6JON: VSWR

GTV23-34w plot 1150-1350 MHz by ZS6JON: Smith Chart









Downloads

None so far.








73, Hartmut, DG7YBN
