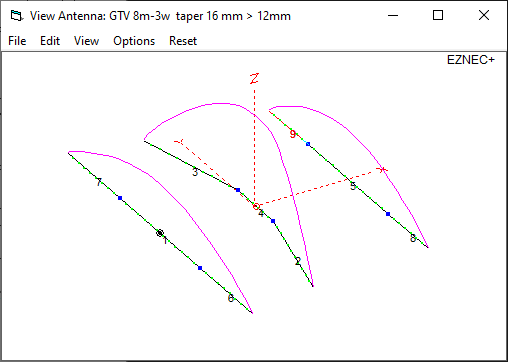

GTV 40-3m Yagi   with bent Driven Element

A compact Yagi with high F/B thanks to the bent dipole (K6STI style).






Performance Data

           Elem. taperd 16 mm + 12 mm
Gain vs. isotr. Rad.   7.2 dBi
Gain vs. Dipole        5.3 dBD
-3 dB E-plane         67.6 deg.
-3 dB H-plane        118.6 deg.
F/B                  -25.5 dB
F/R                   -8.2 dB
Impedance               50 ohms
VSWR Band Width     1.07:1 *
Mechan. Length       2165 mm + offsets
Electr. Length        0.29 λ

Stacking Dist. h-pol.
top-to-bottom         4.28 m = 14.1 ft
side-by-side          6.62 m = 21.7 ft

*) at 41.00 MHz


Geometry

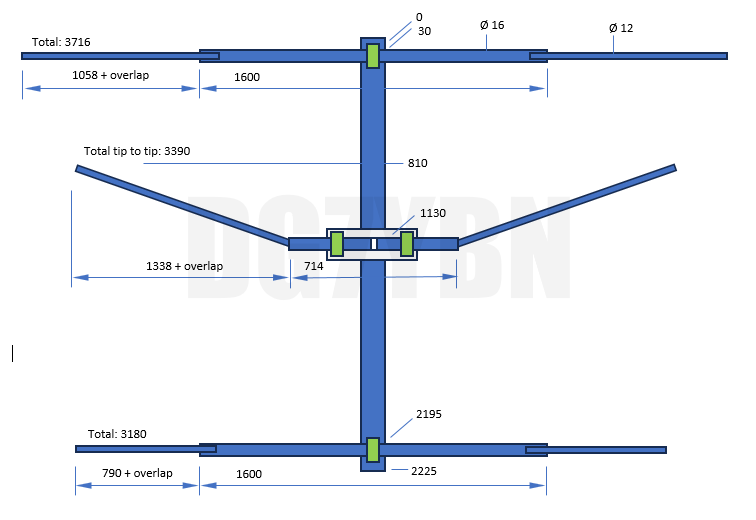

Cutting length of tubes for dipole arms must be longer then the guven total length,
shaped and shortende for a span as given in the drawing.

How many radio amateurs have been looking up this website since April 2024?
Flag Counter








Pattern and VSWR Plots

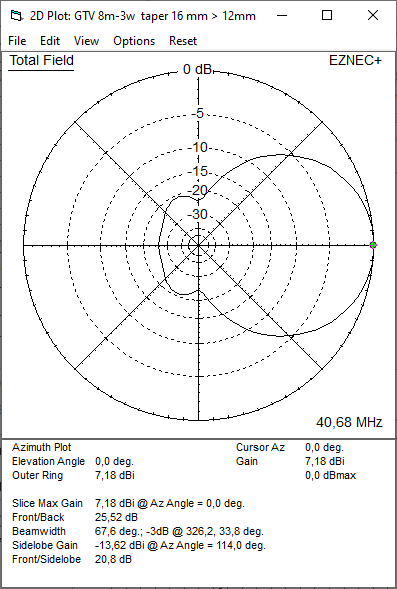

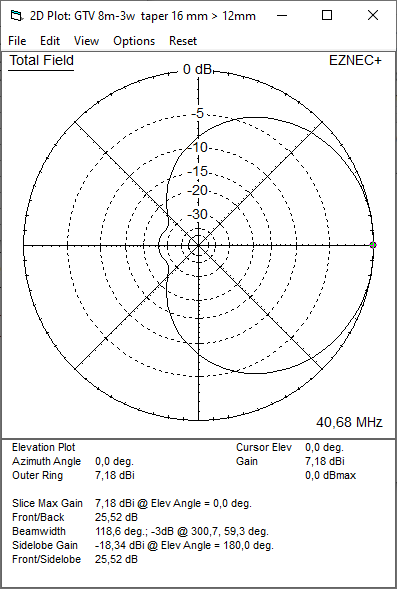

Elevation and Azimuth plot at 40.68 MHz

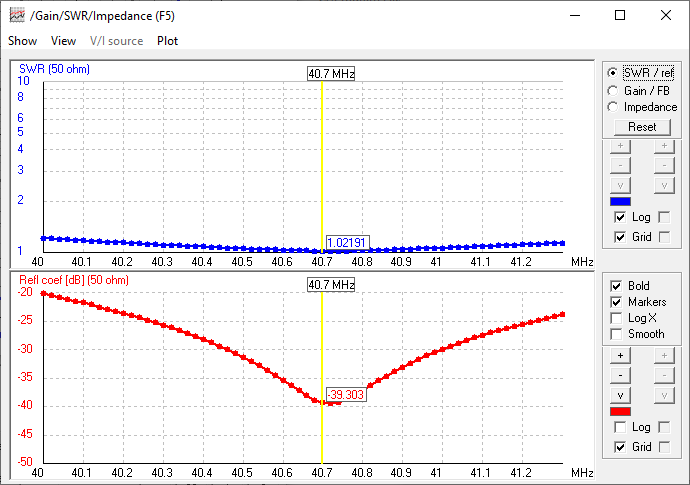

RL and SWR plot - simulated
