DG7YBN / 40 MHz / YBN 40-7m
  Last Update Apr. 26th 2024




.......



Performance Data and Geometry
Pattern and VSWR
Download as File
Stacking


YBN 40-7m Yagi   with conventional straight Dipole

This a Low Noise, direct feed 50 ohms full size 7 ele. Yagi for the 8 m band.






Performance Data

Elements              12.7 mm
Gain vs. isotr. Rad.  12.28 dBi
Gain vs. Dipole       10.1 dBD
-3 dB E-plane         54.8 deg.
-3 dB H-plane         52.8 deg.
F/B                  -24.3 dB
F/R                  -21.8 dB
Impedance               50 ohms
VSWR Band Width     1.30:1 *
Mechan. Length        9722 mm plus offsets
Electr. Length        1.32 λ

Stacking Dist. h-pol.
top-to-bottom         x.xx m = xx.x ft
side-by-side          x.xx m = xx.x ft

*) at 41.00 MHz


Geometry

Element and Driver diameter 12.7 mm.
Elements on boom, holders: Hydraulic Clamps like Stauff or similar.
Dipole on base plate, gap in dipole approx. 15 mm.



How many radio amateurs have been looking up this website since April 2024?
Flag Counter








Pattern and VSWR Plots

Elevation and Azimuth plot at 40.68 MHz

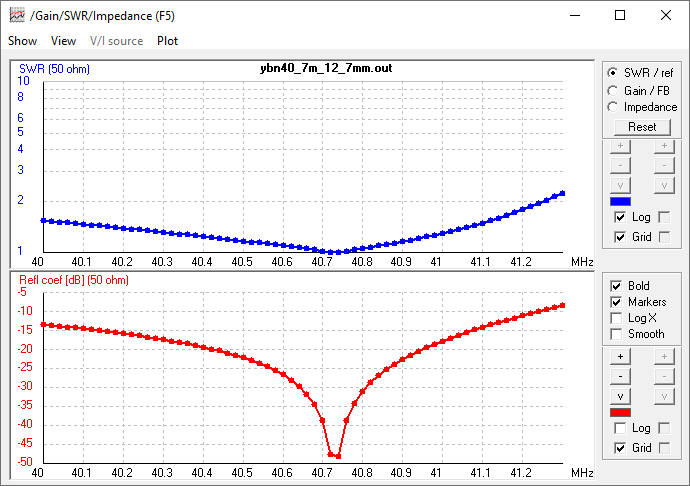

RL and SWR plot - simulated










Downloads

None so far ...


STACKING info might follow ...
