DG7YBN / 40 MHz / YBN 40-3m
  Last Update Apr. 16th 2024


Performance Data and Geometry
Pattern and VSWR
Download as File

YBN 40-3m Yagi   with conventional straight Dipole

This a simple, direct feed 50 ohms 3 ele. Yagi for the 8 m band.

Performance Data

Elements tapered     1/2 in + 3/8 in
Gain vs. isotr. Rad.   7.15 dBi
Gain vs. Dipole        5.0 dBD
-3 dB E-plane         68.2 deg.
-3 dB H-plane        121.8 deg.
F/B                  -19.7 dB
F/R                   -8.5 dB
Impedance               50 ohms
VSWR Band Width     1.18:1 *
Mechan. Length        3261 mm plus offsets
Electr. Length        0.44 λ

Stacking Dist. h-pol.
top-to-bottom         4,22 m = 13.8 ft
side-by-side          6.57 m = 21.6 ft

*) at 41.00 MHz

YBN 40-3m built by John, ZS6JON

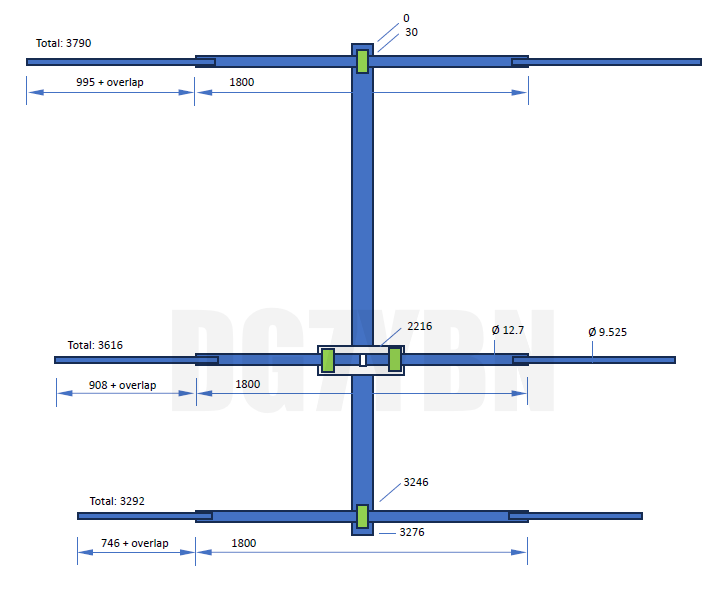

Element and Driver diameter are tapered 1/2 in + 3/8 inch.
Elements on boom, holders: Hydraulic Clamps like Stauff or similar.
Dipole on base plate, gap in dipole approx. 15 mm.

How many radio amateurs have been looking up this website since April 2024?
Flag Counter

Pattern and VSWR Plots

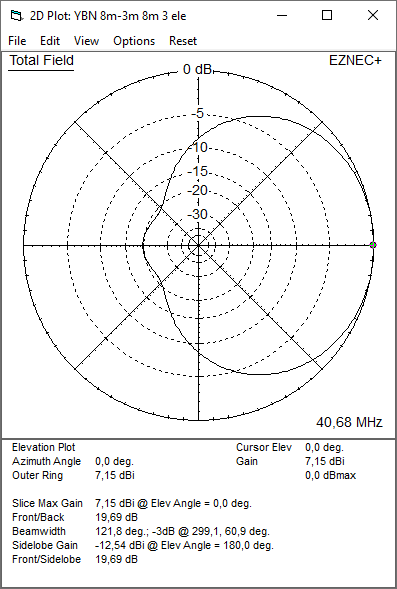

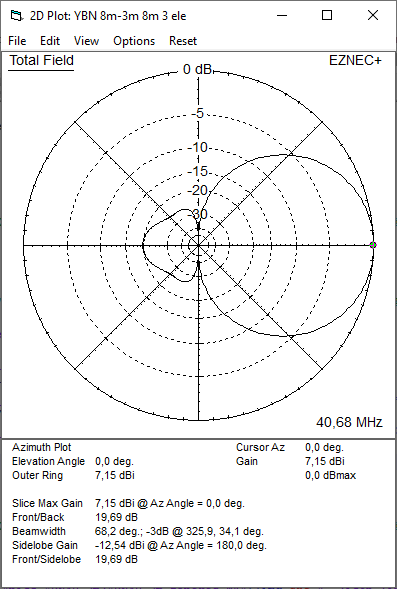

Elevation and Azimuth plot at 40.68 MHz


RL and SWR plot - simulated

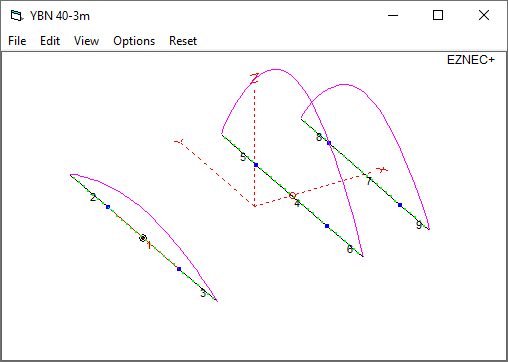

EZNEC file of this Yagi

STACKING info might follow ...

73, Hartmut, DG7YBN
