Performance Data and Geometry attern and VSWR Download as FileYBN 4m-8m Yagi with straight split dipole
This full size 4 m Yagi has a high F/B and altogether very little back lobe volume
The design is a blueprint of the 5 -8 concept 8 ele. 144 MHz Yagi design with 50 ohms at feed point for direct feed.
With no high segmentation correction or complex radiators involved this design is pretty much a straight forward
simple building yet performing antenna. For stacking examples, patterns and data see the website of the
YBN 2-8m see here
|
|
Performance Data
Gain vs. isotr. Rad. 13.2 dBi Gain vs. Dipole 11.0 dBD -3 dB E-plane 47.0 deg. -3 dB H-plane 54.8 deg. F/B -25.4 dB F/R -19.3 dB Impedance 50 ohms Mechan. Length 7159 mm Electr. Length 1.67 λGeometry
No SBC needed since designed with auto segmentated wires at designated frequency
=> Free Space Geometry ready to apply a BC according planned style of building
With Dipole 16 mm and Elements 12 mm
Refl DE D1 D2 D3 D4 D5 D6
Pos. 0 582 829 1691 2958 4375 5854 7159
Ele. 2118 2044 1966 1914 1892 1850 1844 1766
Diam. 12 16 12 12 12 12 12 12
With Dipole 12 mm and Elements 10 mm
Refl DE D1 D2 D3 D4 D5 D6
Pos. 0 582 829 1691 2958 4375 5854 7159
Ele. 2120 2053 1973 1944 1902 1861 1855 1772
Diam. 10 12 10 10 10 10 10 10
Pattern and VSWR Plots

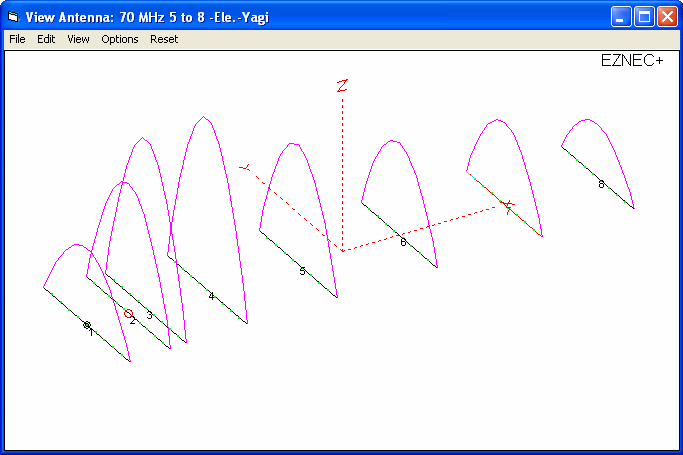

Elevation and Azimuth plot at 70.15 MHz

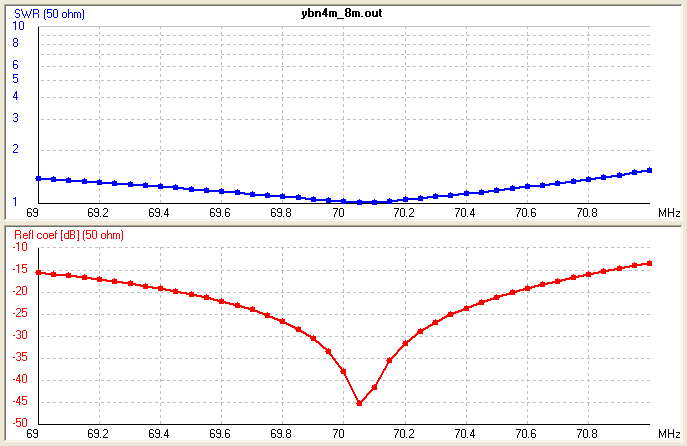

RL and SWR plot - simulated
Downloads
EZNEC file of this Yagi (12 mm ele.)
73, Hartmut, DG7YBN
