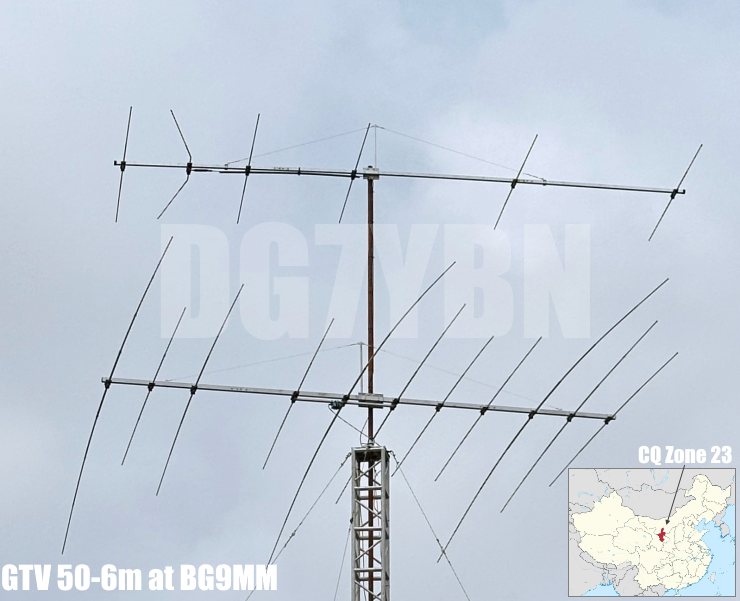

Elem. 16 mm
Gain vs. isotr. Rad.  11.9 dBi
Gain vs. Dipole        9.7 dBD
-3 dB E-plane         46.5 deg.
-3 dB H-plane         57.0 deg.
F/B                  -30.6 dB
F/R                  -23.0 dB
Impedance               50 ohms
VSWR Band Width     1.51:1 *
Mechan. Length        6782 mm plus offsets
Electr. Length        1.13 λ

Stacking Dist. h-pol., 50.3 MHz
top-to-bottom         6.79 m = 24.8 ft
side-by-side          7.55 m = 20.5 ft

*) as in VE7BQH G/T table = at 50.50 MHz

Geometry
Table 1: GTV50-6m, elements 1/2 inch, dipole 5/8 inch on a 1-1/4 inch square boom:

---

"Ready to saw and drill" data for elements on boom with BC acc. DG7YBN for Stauff Clamps:

Boom shape: square Boom: 1-1/4 x 1-1/4 inch Offset rear: 40 mm Offset front: 40 mm

Stauff Clamps 2-15-PP plus screws M6 x 75

Note: This includes a "Segmentation Density Correction" (SBC) of 2.14 mm

Sketch of bent dipoles geometry:

This design has been viewed how often after the first built has been published in May 2024?

---

Pattern and VSWR Plots

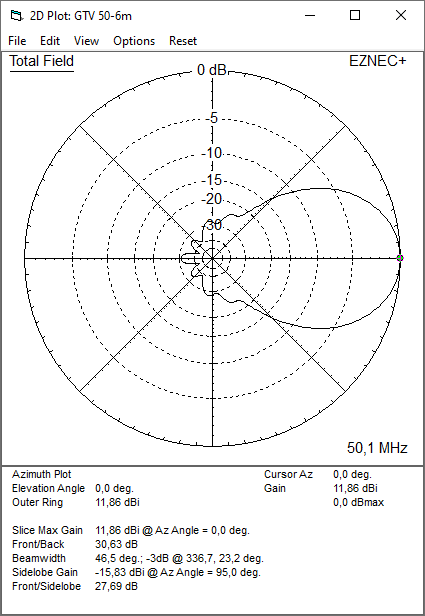

Elevation and Azimuth plot at 50.1 MHz

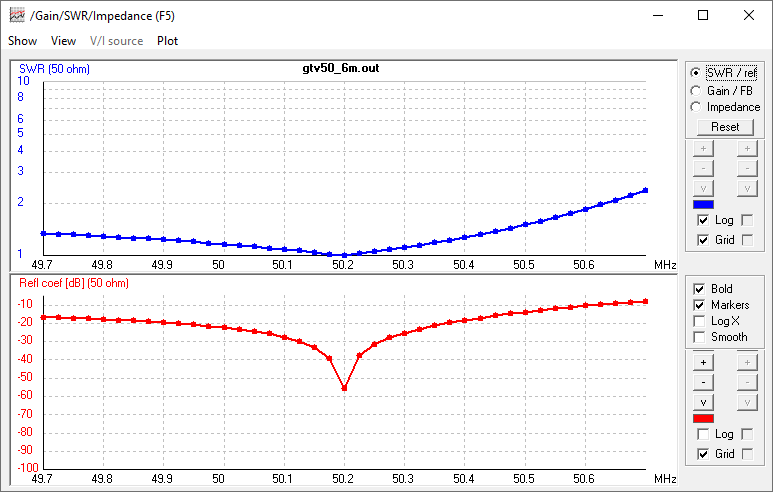

RL and SWR plot - simulated

---

Downloads

none so far

---

Stacking

2 x vertical GTV50-6m:
Elevation plot at 50.3 MHz

At 100 percent of distance per DL6WU formula:

Stacking Dist.    DL6WU Formula
H-plane               6.245 m
E-plane               7.549 m

Free space and with lower Yagi at 10 m above 'perfect ground'



At 90 percent of distance per DL6WU formula:

Stacking Dist.    DL6WU Formula
H-plane               5.621 m
E-plane               6.794 m

Free space and with lower Yagi at 10 m above 'perfect ground'



More stacking Info may follow





73, Hartmut, DG7YBN
