Performance Data and Geometry Pattern and VSWR Mounting to Mast Suggestion Stacking & Antenna G/TGTV 70-46w Yagi with bent Driven Element
EME band segment to 438 MHz very long Yagi
Bred as a very low noise Yagi it shows a typically clean pattern for its length.
The bent dipole is K6STI style as with all GTV designs
This design more or less is just a case study:
I wanted to see if I come near the
"PA432-43-12 World Best 432 MHz Antenna G/T / World Best G/T Super Yagi"
on same boom length and element diameter.
The GTV 70-46w is not fully developed. I stopped at the point were I found
a higher G/T and lower Antenna Temperature to that 43 element 12 m boom Yagi.
Hence there will be no support for how to build this Yagi at the moment.
Currently I seek to calm this annoying second side lobe ...
Antenna View and Current Profile
Performance Data
Specs: with 8 mm elements @ 432.1 MHz
Gain vs. isotr. Rad. 21.7 dBi Gain vs. Dipole 19.6 dBD -3 dB E-plane 16.8 deg. -3 dB H-plane 17.2 deg. F/B -40.3 dB F/R -36.5 dB Impedance 50 ohms Mechan. Length 12030 mm incl. 2 x 30 mm boom ends offset Electr. Length 17.25 λ Stacking Dist. h-pol. top-to-bottom 2.320 m side-by-side 2.375 m
How often has this Design being viewed since Jan. 2017?
Elevation and Azimuth Plot
Return Loss and VSWR
Serving Suggestion
It is understood that it is vital for such a long beam of rather limited thickness
that we support it with a 3 dimensional stucture. Which might be produced by
the combination of a strut and two v-shape guy wires to front and back. With sufficent
stiffness to prevent the whole thing from shaking in wind gales which animate it to
vibrate in 1st or 3rd natural mode.
4 Yagi bay at Stacking Distances per DL6WU (2375 x 2320 mm) strictly for now.
Radiation Pattern Simulations
Antenna Temperature and G/T; Average Gain for the lossless Yagi model is 1.001

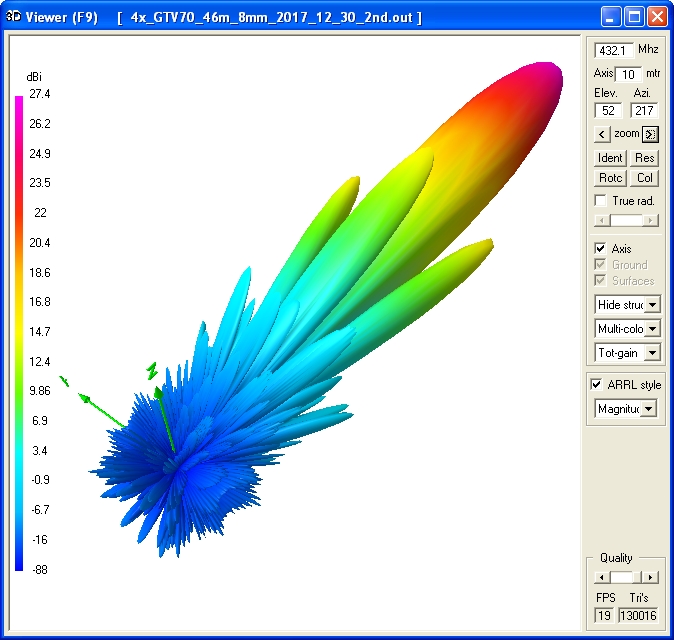

Plots generated with 4nec2's 3D Viewer
73, Hartmut, DG7YBN
