Performance Data and Geometry Pattern and VSWRGTV 2-19m Yagi with bent Driven Element
EME + SSB serious full size Long Yagi (12.4 m boom)
Serves as single Yagi for EME even with modest output power. Can be used up to FM range of band.
The pattern with all rear lobes down to approximately -30 dB makes it a very useful contest antenna.
The bent DE (K6STI style) transforms from low impedance to 50 ohms at feed point for direct feed.
Performance Data
Gain vs. isotr. Rad. 17.8 dBi Gain vs. Dipole 15.6 dBD -3 dB E-plane 25.0 deg. -3 dB H-plane 26.2 deg. F/B -31.8 dB F/R -29.5 dB Impedance 50 ohms VSWR Band Width 1.26:1 * Mechan. Length 12342 mm Electr. Length 5.93 λ Stacking Dist. h-pol. top-to-bottom 4.59 m or 15.1 ft side-by-side 4.81 m or 15.8 ft *) as in VE7BQH G/T table = at 145.00 MHz

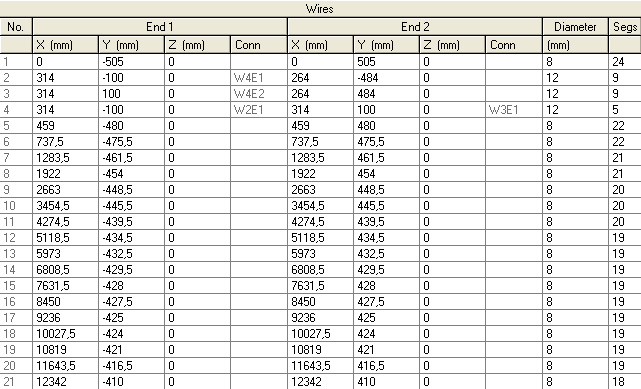

Geometry
Pos. Full Length
Free Space
incl. SBC
Refl. 0.0 1012.3
DE(b) 264.0 970.3
DE(a) 314.0 0-100
D1 459.0 962.3
D2 737.5 953.3
D3 1283.5 924.3
D4 1922.0 910.3
D5 2663.0 899.3
D6 3454.5 893.3
D7 4274.5 881.3
D8 5118.5 871.3
D9 5973.0 867.3
D10 6808.5 861.3
D11 7631.5 858.3
D12 8450.0 857.3
D13 9236.0 852.3
D14 10027.5 850.3
D15 10819.0 844.3
D16 11643.5 835.3
D17 12342.0 822.3
ele. 8 mm
SegmentationBC = +2.3 mm = (144.6 MHz - 144.2 MHz) * 5.85 mm/MHz
Note: element lengths for Ø 8 mm fit 5/16" too
The Drivers diameter is 12 mm for all examples.
Use EZNEC's Auto-Segmentation at 380 MHz.

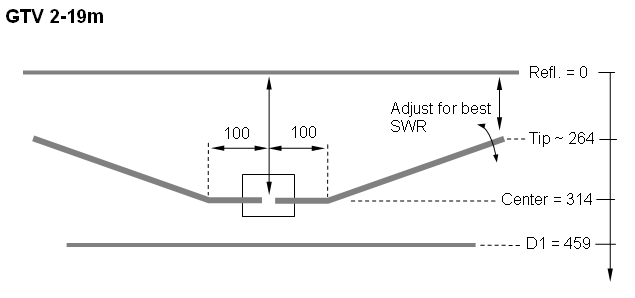

Sketch of Bent Dipole
Pattern Plots
Azimuth plot at 144.1 MHz

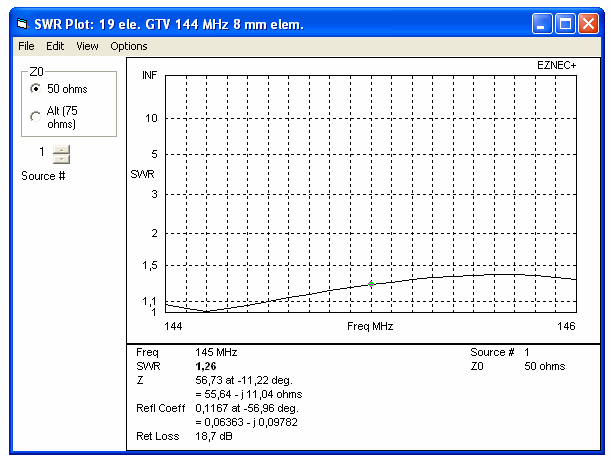

SWR plots - simulated
144.0 - 145.0 MHz
144.0 - 146.0 MHz
73, Hartmut, DG7YBN
