DG7YBN / 144 MHz / GTV 2-12m mk2
  Last Update Nov. 24th 2021


Performance Data and Geometry
Pattern and VSWR
Download as File

GTV 2-12m Yagi   with bent Driven Element - Mark 2 design

Link to the mk1 design website

EME + SSB band version

The redesigned Yagi shows even lower back lobes and T_ant then the initial design. Gain dropped by 0.07 dB but G/T increased by 0.02 dB due
to much lower Antenna Temperature whilst yielding more bandwidth. It may serve as single antenna for Tropo, MS or even EME or make a quiet
contest antenna due to its high F/B. The bent DE (K6STI style) transforms from approx. 17 ohms to 50 ohms at feed point.

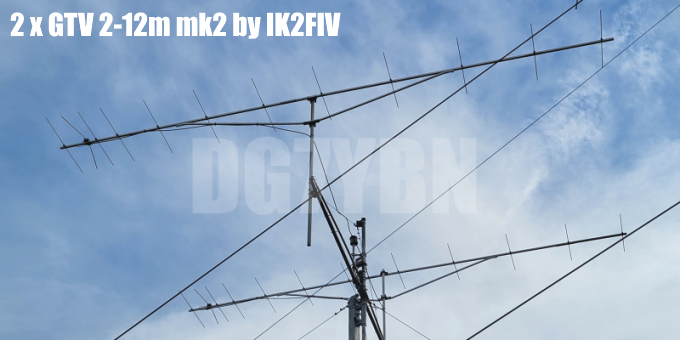

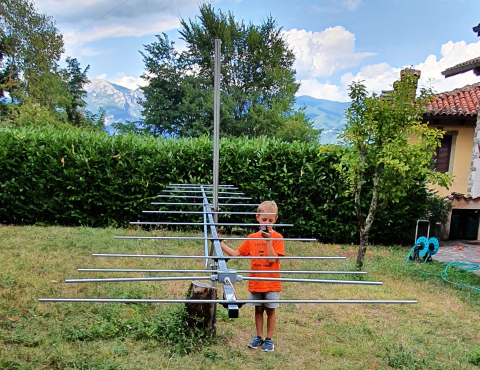

GTV 2-12m mk2 by IK2FIV

The Yagi is built on 25 x 25 mm boom, 8 mm el. on standard holders by 7arrays.

With "second operator" for backup.

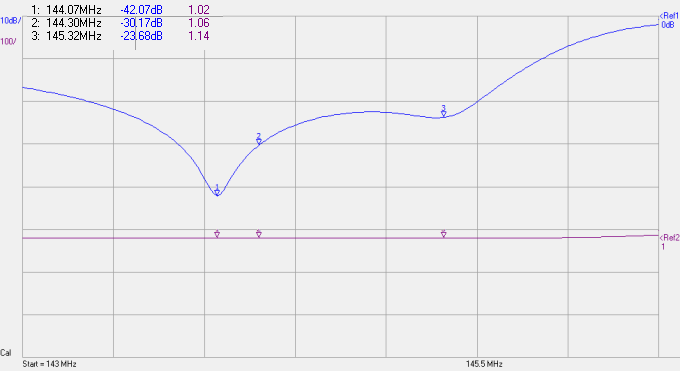

Photo credit & Return Loss plot: IK2FIV. Thank you Marco!

Marco trimmed it to the start of band for EME purpose.

GTV 2-12m mk2 by YO2LSP

Edy, YO2LSP reports:
"I have built for me - 144 MHz / GTV 2-12m mk2. Is in use for more than 6 month and is working very well."
Photo credit: YO2LSP. Thank you Edy!

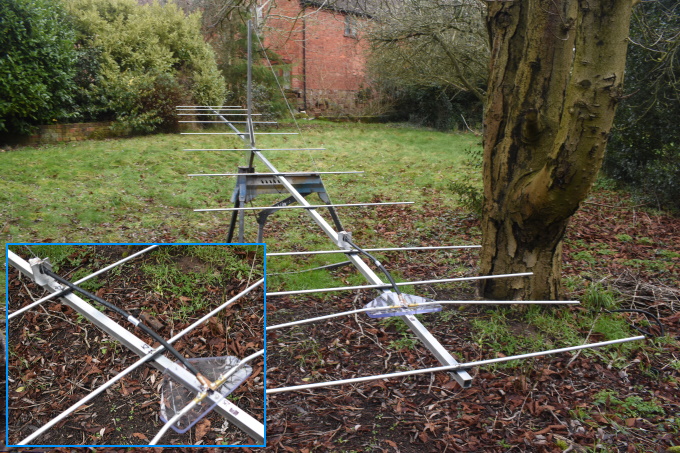

GTV 2-12m mk2 by G1YFG

Robin, G1YFG built the dipole fastening plate from 10 mm Polycarbonate (lexan/makrolon) cut his CNC machine.
"It has a 3 mm deep by 20 mm wide slot to align it on the boom, it has 6 mm x 3 mm slots with 2 x bolts for the elements."

Photo credit: G1YFG. Thanks Robin!

A slightly modified GTV 2-12m mk2 built by Hans-Jörg Dierking, DJ6CA. Link to his website with building hints

Jörg used a 20x20 mm boom, 8 mm elements, standard on boom insulators by Konni-Antennen and 6.3 mm of BC
The 6.3 mm hold the 2.0 mm of SBC + 3.9 mm YBN On-Boom-BC with standard insulators + 0.4 mm for including the top pieces
that Konni-Antennen offers additionally to the base insulator. Well done!

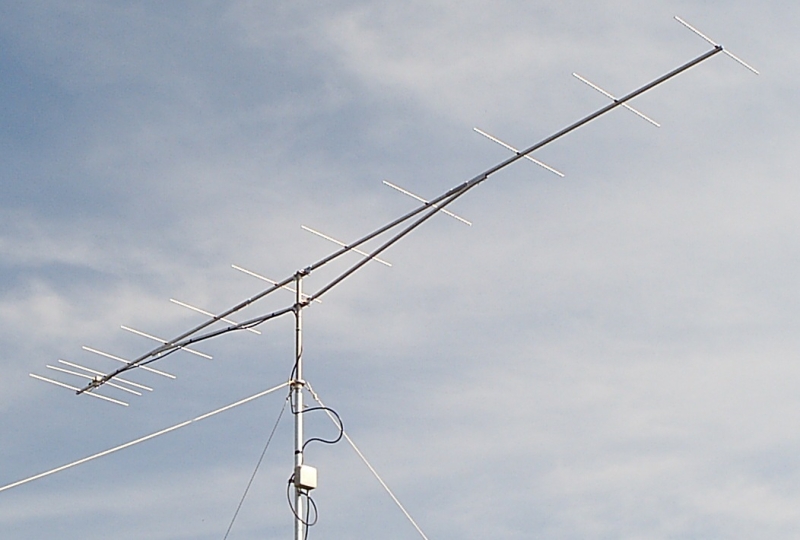

GTV 2-12 mk1 built by DG7YBN on 20x20x1 mm boom, ele. 8 mm, lightweight /P version used in Contest at DL0IA/p

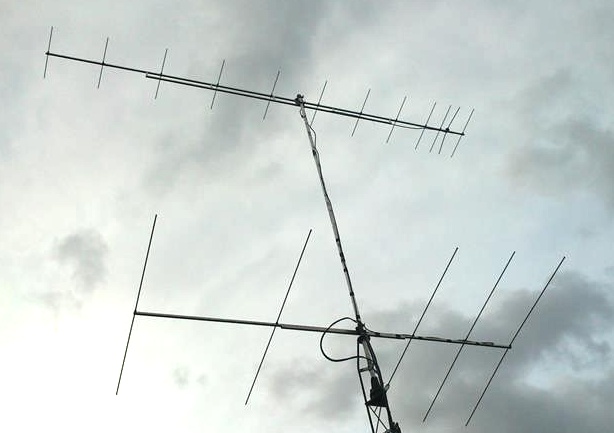

GTV 2-12m mk2 built by DK5EW

Comparism of mk1 and mk2 design in G/T table format

Note that this is not a clipping of the official 144 MHz G/T Table but my own compilation.
Link to the official 144 MHz G/T table by VE7BQH with this Yagi named 'DG7YBN 12 Ver2'

Performance Data

Gain vs. isotr. Rad.  15.5 dBi
Gain vs. Dipole       13.4 dBD
-3 dB E-plane         32.0 deg.
-3 dB H-plane         34.2 deg.
F/B                  -31.2 dB
F/R                  -28.0 dB
Impedance               50 ohms
Mechan. Length        6781 mm
Electr. Length        3.26 λ

Stacking Dist. h-pol.    DL6WU     max. G/T
top-to-bottom           3.54 m      3.82 m
side-by-side            3.77 m      3.99 m

        Pos.    Full Length       Free Space           incl. BC           incl. BC
                Free Space        incl. SBC        on 20x20 Boom      on 25x25 Boom
Refl.     0      1008.0            1010.0               1013.9            1017.6
DE(b)   238      100-(968)       100-(970.0)          100-(973.9)       100-(977.6)
DE(a)   296       0-100             0-100               0-100             0-100
D1      431       959.0             961.0               964.9             968.6
D2      715       951.0             953.0               956.9             960.6
D3     1256       927.5             929.5               933.4             937.1
D4     1896       911.0             913.0               916.9             920.6
D5     2638       898.4             900.4               904.3             908.0
D6     3424       886.0             888.0               891.9             895.6
D7     4286       874.0             876.0               879.9             883.6
D8     5150       866.0             868.0               871.9             875.6
D9     6007       856.0             858.0               861.9             865.6
D10    6781       842.0             844.0               847.9             851.6
                ele. 8 mm         ele. 8 mm          ele. 8 mm         ele. 8 mm

 Insulated through Boom builds: => Use column "Free Space incl. SBC" and add thru Boom BC.
Use DL6WU/G3SEK BC number for insulated through round boom (add +3.4 mm for 25x25 mm boom)
or apply SM5BSZ's BC.exe (see my BC page) for best fitting numbers for your boom and insulators.

 On Boom builds: => Use column "incl. BC on 25x25 mm boom" for standard insulators plus M3 screw
SegmentationBC = +2.0 mm = (144.65 MHz - 144.30 MHz) * 5.85 mm/MHz
BaseBC (25x25) = +7.6 mm for semi-insulated on boom // exchange with +3.9 mm for 20 x 20 mm boom
Total          = +9.6 mm to be added to "Full Length Free Space (ex. SBC)"

Note: element lengths for Ø 8 mm fit 5/16" too

The Drivers diameter is 10 mm for all examples. Use EZNEC's Auto-Segmentation at 350 MHz.

To add a BC on the DE is a strictly individual measure due to the actual height above the boom.
For same heigth as elements use full "On Boom BC"; for double that or more use added SBC only.

  • For details on the On-Boom BC see here
  • For details on DE and BC on it see here
  • Bent DE Online Calculator as web app

How many OMs have been looking up this design? (since Nov. 2015)

Flag Counter

Pattern and VSWR Plots

Current distribution

Elevation and Azimuth plot at 144.1 MHz


SWR and Return Loss plots - simulated with 4nec2

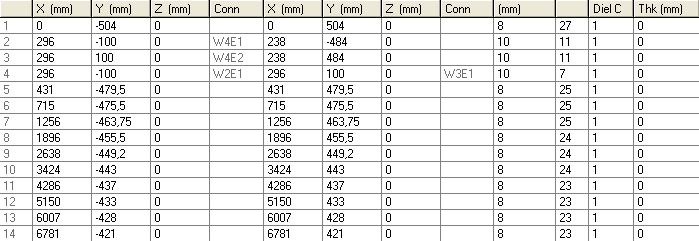

EZNEC file of this Yagi


Elevation plot and data of 4 Yagi bay using DL6WU stacking distances

Gain vs. isotr. Rad.  21.46 dBi
Gain vs. Dipole       19.31 dBD
-3 dB H-plane,        14.4 deg.
-3 dB E-plane,        15.4 deg.
F/B                  -34.0 dB
F/R                  -32.2 dB
T_ant                222.9 K*
G/T                  -2.02 dB*
Theoretical numbers, no phasing line losses
nor imperfections caused by H-frame included
*) T_sky = 200 K, T_earth = 1000 K as in VE7BQH G/T table

Data of 4 Yagi bay using distances for max. G/T

TANT screenshot

73, Hartmut, DG7YBN
