Performance Data and Geometry Pattern and VSWR Download as FileYBN 2-10w Yagi with Conventional Driver (Split or Folded Dipole)
This is the third extension of the original 5-8 concept. Now there are 3 buiding blocks. Starting with the YBN 2-5m,
extension No. 1 to the YBN2-8m and finally to the YBN2-10w. They all use the same Driver Cell elements and dipole.
Thus one can swap between various setups like 5 over 5 to 4 x 8 elem. or to 4 x 5 ele. vertically or now even any
2 x 10 ele. or full 4 bay of 10 elements very easily.
The YBN2-10w is a real low Q Yagi. The G/T is not spectacular - though solid average still - but this is a very
forgiving design suitable to be built by everyone and anyone. There is an off the shelf Folded DE with Balun etc.
available for these three blocks even.
Just as time, place and WX conditions demand. Read the full text in Dubus magazine issue 4/2012
|
|
Performance Data
Elem. 8 mm
Gain vs. isotr. Rad. 14.3 dBi
Gain vs. Dipole 12.1 dBD
-3 dB E-plane 37.2 deg.
-3 dB H-plane 41.0 deg.
F/B -23.5 dB
F/R -23.5 dB
Impedance 50/200 ohms
Mechan. Length 4950 mm
Electr. Length 2.38 λ
Stacking Dist. h-pol.
top-to-bottom 2.97 m (10.70 ft)
side-by-side 3.26 m ( 9.75 ft)
|
|

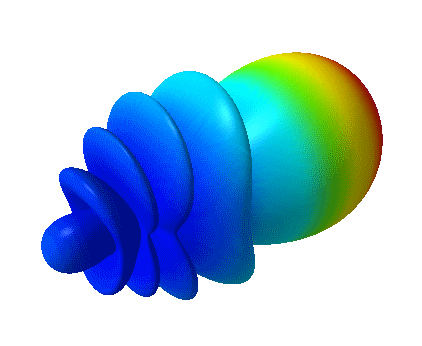

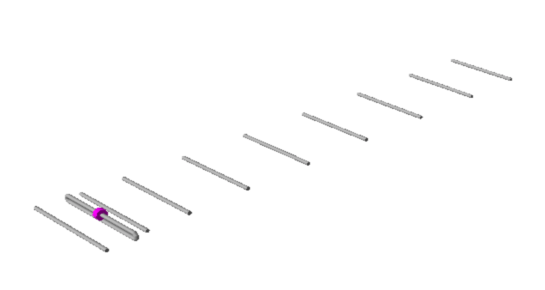

EZNEC wires window : Straight Split DE Version
No SBC needed since designed with auto segmentated wires at designated frequency => Free Space Geometry ready to apply a BC according planned style of building
Ø8 mm Elements exclusive boom in free air
Refl DE D1 D2 D3 D4 D5 D6 D7 D8
Pos. 0 283 403 822 1440 2130 2850 3580 4325 4950
Ele. 1029 992 950 932 909 886 878 876 872 834
Diam. 8 10 8 8 8 8 8 8 8 8
Ø8 mm Elements insulated on 20 x 20 mm Boom -
Dimensions using common holders by Konni, WiMo, Nuxcom & 7arrays (BC acc. DG7YBN)
Refl DE D1 D2 D3 D4 D5 D6 D7 D8
Pos. 0 283 403 822 1440 2130 2850 3580 4325 4950
Ele. 1032.9 (995.9) 953.9 935.9 912.9 889.9 881.9 879.9 875.9 837.9
Diam. 8 10 8 8 8 8 8 8 8 8
Ø8 mm Elements insulated on 25 x 25 mm Boom -
Dimensions using common holders by Konni, WiMo, Nuxcom (BC acc. DG7YBN)
Refl DE D1 D2 D3 D4 D5 D6 D7 D8
Pos. 0 283 403 822 1440 2130 2850 3580 4325 4950
Ele. 1036.6 (999.6) 957.6 939.6 916.6 893.6 885.6 883.6 879.6 841.6
Diam. 8 10 8 8 8 8 8 8 8 8
Ø8 mm Elements insulated on 25 x 25 mm Boom -
Dimensions using high holders by 7arrays (BC acc. DG7YBN)
Refl DE D1 D2 D3 D4 D5 D6 D7 D8
Pos. 0 283 403 822 1440 2130 2850 3580 4325 4950
Ele. 1032.7 (999.6) 953.7 935.7 912.7 889.7 881.7 879.7 875.7 837.7
Diam. 8 10 8 8 8 8 8 8 8 8
Ø6 mm Elements insulated on 20 x 20 mm Boom -
Dimensions as if using SM7DTT Holders (BC = 2.3 mm acc. DG7YBN)
Refl DE D1(x) D2 D3 D4 D5 D6 D7 D8
Pos. 0 283 403 822 1440 2130 2850 3580 4325 4950
Ele. 1030.3 (999.6) 962.3 940.3 921.3 898.3 892.3 888.3 880.3 848.3
Diam. 6 10 6 6 6 6 6 6 6 6
(x) D1 geometry for use of folded dipole, may be subject to changes for straight split dipole
Ø5 mm Elements insulated on 20 x 20 mm Boom -
Dimensions using SM7DTT Holders (BC = 2.3 mm acc. DG7YBN)
Refl DE D1(x) D2 D3 D4 D5 D6 D7 D8
Pos. 0 283 403 822 1440 2130 2850 3580 4325 4950
Ele. 1032.0 (999.6) 967.0 945.0 927.0 903.0 900.0 893.0 885.0 855.0
Diam. 5 10 5 5 5 5 5 5 5 5
(x) D1 geometry for use of folded dipole, may be subject to changes for straight split dipole
This Yagi with 8 mm elements on a 20 x 20 mm boom with hydraulic clamps (like Stauff)
|
Ele. 8.0 mm DE 10.0 mm Boom 20 x 20 mm |
"Ready to saw and drill" data for mounting elements on boom with BC according DG7YBN for hydraulic clamps (like Stauff):
Includes an SBC of 0.0 mm
Here is a very helpful overview on the stages of the YBN 5- 5 / 8 / 10 ele. project provided by Stef, F4EZJ
It shows what elements are shared and different at what positions on the boom for the various combinations
Note: Lengths given fit elements mounted on a 20 x 20 mm boom with 'standard insulators' and M3 screw
Drawing of boom for full extensions YBN 2-5m > YBN 2-8m > YBN 2-10w
Pattern and VSWR Plots
Elevation and Azimuth plot at 144.1 MHz - Version with Folded Dipole from WiMo EF0208c
Return Loss and VSWR plot
Downloads
EZNEC file of this Yagi with Straight Split DE
EZNEC file of this Yagi with Folded DE
Stacking
Stacking Dist. DL6WU Formula H-plane 2.97 m E-plane 3.26 m
Data of 4 Yagi stack using DL6WU stacking distances
Gain vs. isotr. Rad. 20.1 dBi Gain vs. Dipole 18.0 dBD F/B -28.2 dB F/R -28.2 dB T_ant 234,9 K* G/T -3,58 dB* (straight split DE version)Theoretical numbers, no phasing line losses
nor imperfections caused by H-frame included
*) T_sky = 200 K, T_earth = 1000 K as in VE7BQH G/T table
Elevation plot
TANT screenshot
73, Hartmut, DG7YBN
